NissanVanette SerenaKVC2301.1997 - 01.1998Engine and fuel system223 - vacuum piping & canister (engine)

223 - vacuum piping & canister (engine) for Nissan Vanette Serena KVC23



Frame / SeriesKVC23 / C23 body W (wagon )engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ)drive 2WD (two-wheel drive )
Manufacture period01.1997 - 01.1998grade FXtransmission AT (automatic transmission )

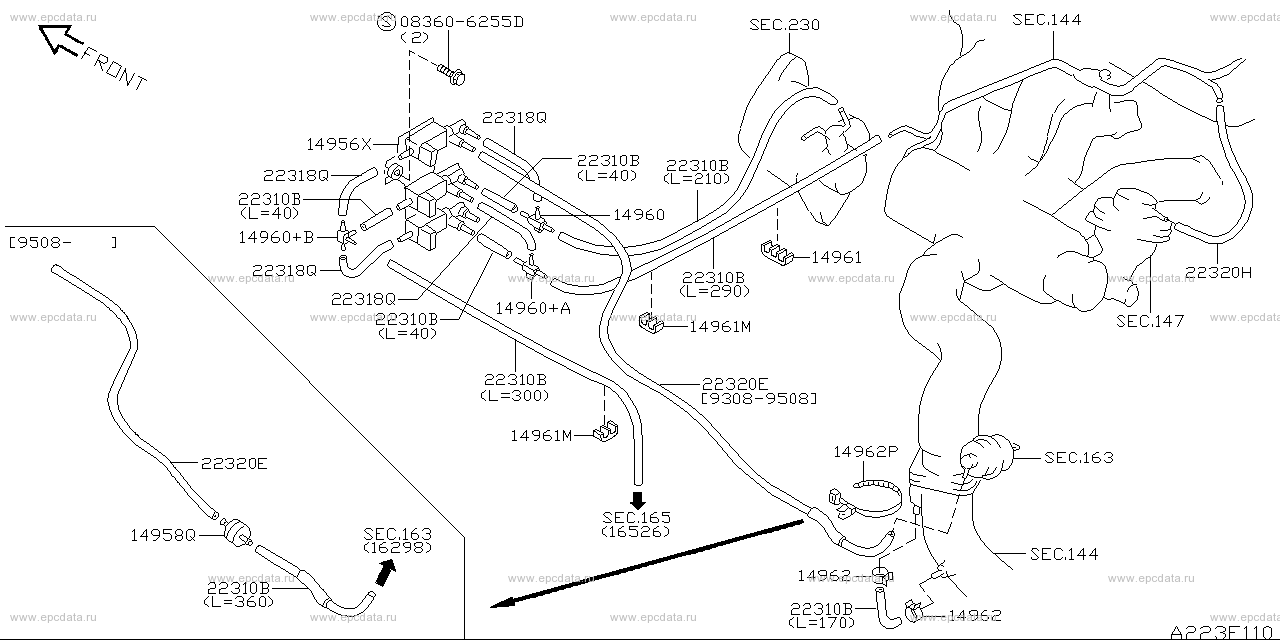

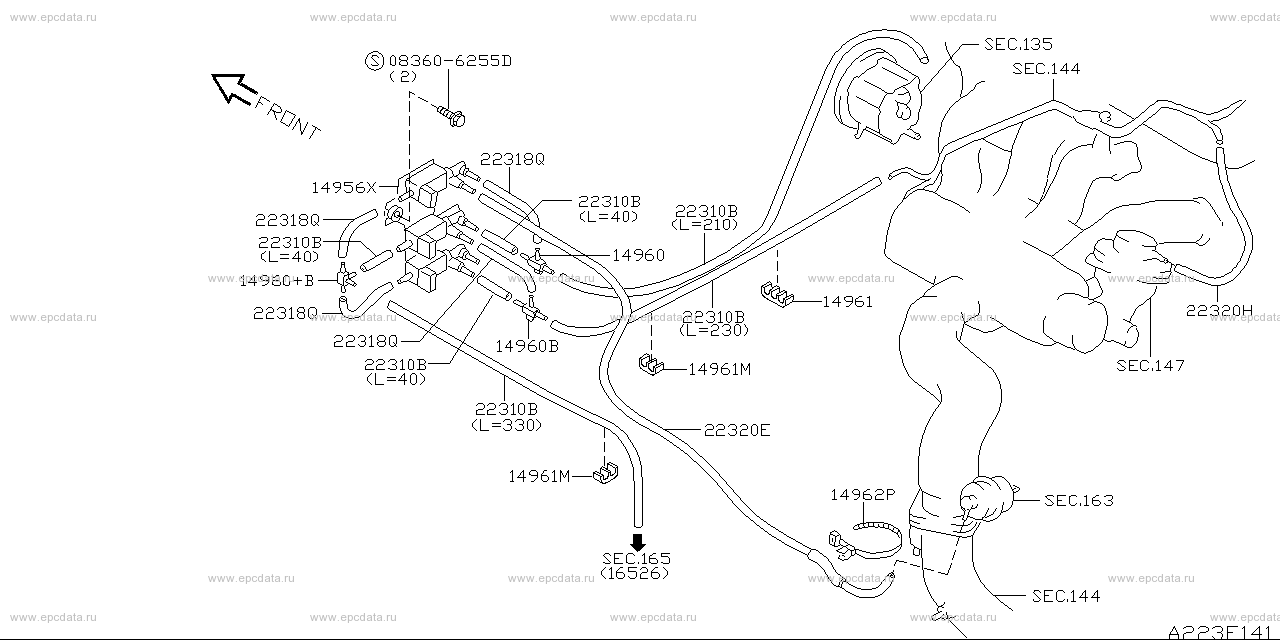

Scheme 223E_002 Scheme 223E_003
Applies for modelsManufacture periodSpec
CD20T05.1994 - 01.1997

Open full screen pictureOpen full screen picture
Up to the top

083606255D
14956X - valve assembly, solenoid
14958Q - valve assembly, vacuum delay
14960 - connector A
14960+A - connector A
14960+B - connector A
14961 - clamp, hose A
14961M - clamp, hose A
14962 - clamp, hose B
14962P - clamp, hose B
22310B - hose, vacuum control
22318Q - hose, vacuum control A
22320E - hose, vacuum control A
22320H - hose, vacuum control B
Applies for modelsManufacture periodSpec
CD20ET01.1997 - 01.1998
CD20ET01.1998 - ...

Open full screen pictureOpen full screen picture
Up to the top

083606255D
14956X - valve assembly, solenoid
14960 - connector A
14960+B - connector A
14960B - connector A
14961 - clamp, hose A
14961M - clamp, hose A
14962P - clamp, hose B
22310B - hose, vacuum control
22318Q - hose, vacuum control A
22320E - hose, vacuum control A
22320H - hose, vacuum control B

Nissan Vanette Serena genuine parts
